Single reduction helical gear motors

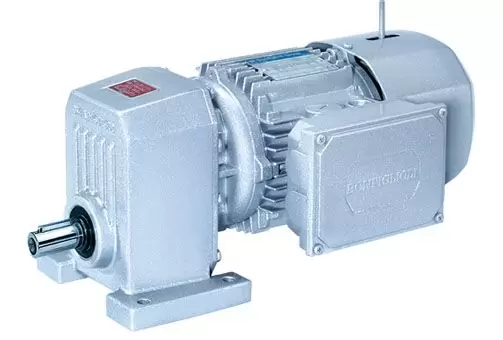

Bonfiglioli single reduction helical gear motors

Simple and yet powerful is the Bonfiglioli single reduction helical gear motors of the S series, a single reduction helical gear motor developed for the pump industry as well as the fan and blower application.
Foot and flange mounted, with shaft dimensions to the UNEL standard.

Torque Range
21 Nm… 200 Nm

Mechanical Rating (n1= 1400 min-1)
0,12 … 11,6 kW

Gear ratios
1,4 … 13,1

Output Configuration
Foot and Flange mount

Bonfiglioli single reduction helical gear motors

Input Configurations
IEC-normalized Motor Adaptors
Solid Input Shaft

Applicable AC motors
Integral motors and Brake motors – M series/ME series
IEC-normalized Motors and Brake motors – BN series/BE series
Single and Dual Speed Motors

Main Brake Features
DC and AC supply
Faster Brake Engage/Disengage through Electonically
Controlled AC/DC Rectifier type SB, NBR, SBR (options)

Main Motor Options
Thermistors and Thermostates sensor
Separate Supply Forced Ventilation
Line Driver and Push-Pull Incremental Encoder
