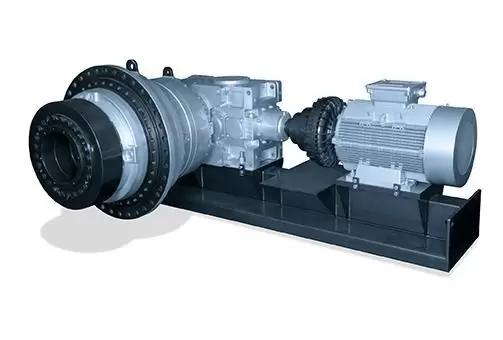

Bonfiglioli combined gearboxes combine the high technology, performance and efficiency of planetary gearboxes with the robustness, quality and reliability of bevel helical gearboxes. These planetary/bevel helical combination gear boxes deliver the high transmissible torque of Bonfiglioli planetary 300 Series along with the excellent power transmission characteristics of bevel helical HDO Series and are ideal for applications that demand high power density along with medium-low output speeds.
The 3/H range consists of 10 standard catalogue sizes that can transmit up to 1200 kNm of torque. Custom combinations are also available. A wide choice of gear ratios and above all the availability of numerous intermediate sizes enable the 3/H range to offer a truly complete answer to the needs of target heavy duty applications.
Numerous combinations cover a wide range of applications and offer:
• Gear ratios from 1:100 to 1:1000
• Rated power up to 980 kW
• Reference torque up to 1200 kNm
Special, complete and custom power transmission solutions are available for specific applications involving:
• Torque arms
• Base plates
• Fluid couplings
• Shoe brakes
• Other accessories (paint coatings, special seals, motor flanges with integrated fans, etc.)
• solid cylindrical shaft
• solid shaft with keyway
• solid shaft with supporting feet
• solid shaft with keyway and supporting feet
• hollow shaft with shrink disc
• hollow shaft with keyway
• Single sided cylindrical shaft
• Flange with motor coupling bell and intermediary elastic joint between the cylindrical shafts of the motor and gearbox.
• Horizontal input shaft• Vertical input shaft
Depending on the needs of the application, 3/HDO combination gearboxes can be supplied with output shafts on the left or right side.
Options & Accessories
• Auxiliary thermal devices
• Forced lubrication
• Backstop device
