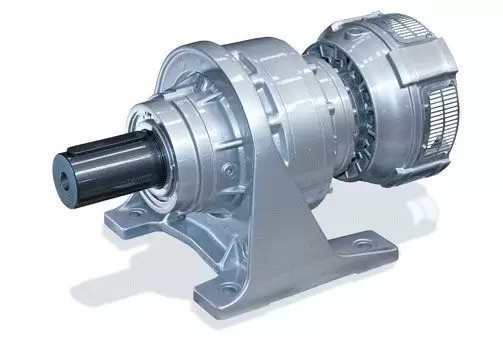

Compact, and yet extremely powerful, are the Bonfiglioli planetary gear motors 300M series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface.
All the features, including the new IEC motor connection with integrated fan, are available for each of the 20 finely spaced frame sizes, spanning over the 1.250 – 1.286.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on – always.
Gear ratios
3.4 … 5000
Main gearbox options and versions
In line
Right angle
Integrated and indipendent cooling system
Taconite seals
Certification for explosive environments
Output
Foot or Flange mounted
Splined shaft (male, heavy duty, hollow, hollow with axial bloackage device)
Solid keyed shaft ( male, heavy duty, stirrer/mixer version)
Hollow shaft with double keyway or shrink disk
Input
Input keyed shaft
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors (with or without integrated fan)
Solid input shaft (with or without integrated fan)
Applicable ac motors
Integral motors and brake motors – M/ME/MX series
IEC-normalized motors and brake motors – BN/BE/BX series
Single and two speed motors
Main motor options
Thermistors and thermostat sensors
Forced cooling
Incremental, sin/cos absolute single/multi-turn encoders
Brakes
Electric AC and DC brakes
Hydraulically released parking brake
